GGX ENERGY 100 Watt Portable Solar Array Solar Panel Charger Kit 12V for House Battery of VW Eurovan Camper/Weekender

GGX ENERGY 100 Watt Portable Solar Array Solar Panel Charger Kit 12V for House Battery of VW Eurovan Camper/Weekender
  • SellerGGX ENERGY Portable Solar Panel Store
  • Price ofUS $366.69 piece
  • Your PriceUS $311.69piece
  • ShippingFree Shipping
  • You SavesUS $55piece15% off
  • Ratings5 (9358)

Product Details

Buying for a GGX ENERGY 100 Watt Portable Solar Array Solar Panel Charger Kit 12V for House Battery of VW Eurovan Camper/Weekender with cheapest price? Read about features, types, and other must-know topics in our GGX ENERGY 100 Watt Portable Solar Array Solar Panel Charger Kit 12V for House Battery of VW Eurovan Camper/Weekender buying guide to make an informed choice. Buy best GGX ENERGY 100 Watt Portable Solar Array Solar Panel Charger Kit 12V for House Battery of VW Eurovan Camper/Weekender Look for the GGX ENERGY 100 Watt Portable Solar Array Solar Panel Charger Kit 12V for House Battery of VW Eurovan Camper/Weekender package that is best for you. Make a price comparison, discount promo, or free sending before ordering.












GGX ENERGY 100 Watt Portable Solar Array Solar Panel Charger Kit 12V for House Battery of VW Eurovan Camper/Weekender

Model: GGX-F100W10

Updated Frosted PET Laminated Solar Panel!



We only use FULL capacity monocrystalline solar panel. All solar cells from Motech/Delsolar in Taiwan or Sharp in Japan, much higher quality than other similar ones.



100W/18V, maximum power current 5.56A. Real test under sunshine, short circuit current above 6.0A.

tested time: at 12:36, July 29, Shenzhen, China

(the condition is enough to get solar panel\'s max output.

thus due to the unstable sunshine, the test result will be different. also the real current for working will be lower due to the consumption.)



c51v55

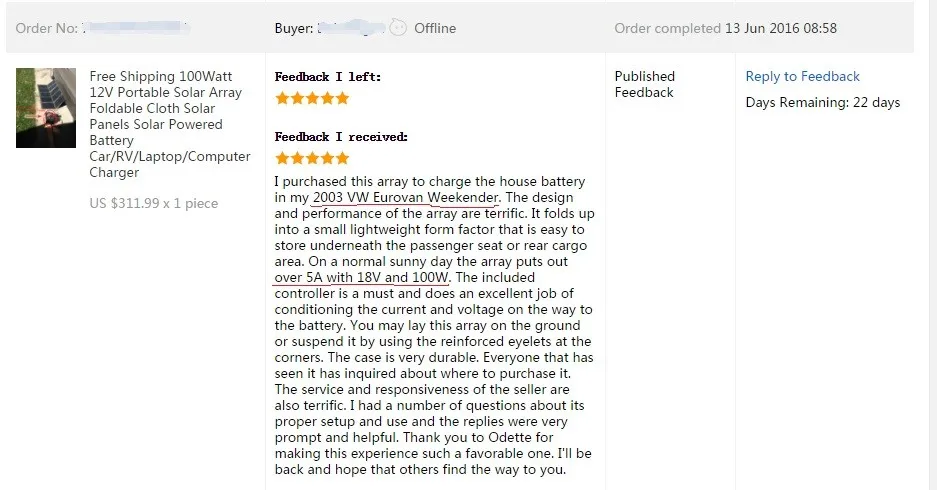

Below is a real feedback about this panel used for 2003 VW Eurovan Weekender.



---





A. Features

Folds up to 40cm x 28cm for easy storage

Soft Edges - Travels well no sharp edges

Tough durable panels ideal for the 4WD or camping

3M charge leads to get the panels in the sun and you in the shade

Heavy Nylon case, water resistant for marine use

Reinforced eyelets for hanging / mounting

Folded up into a bag with hand strap for super portability

High Performance Monocrystaline cells - the most efficient technology available to harness more of the suns power

Pocket for easily storing accessories



B. Description

Portable power as sure as the sun!

Here\'s the pocket-friendly, eco-friendly and travel-friendly solution for keeping your car, RV, truck, boat or UTV\'s 12V battery charged.

This lightweight Solar Station\'s high-efficiency crystaline panels create enough power to charge laptops, top off batteries and more!

When power is scarce, this piece of bug out gear is the ultimate emergency preparedness tool.

The folding design allows for compact storing, small enough to store under the driver’s seat.

Waterproof PVC with PET laminated solar panels make it be waterproof for marine use, plug and play connections gets it up and running right away.

Clean, reliable and compact. The perfect companion for camping, travelling, boating, and more!



C. Usage

Below pictures are for reference only. Please in kind prevail.

1. 18V out charging kinds of laptops:


Usually the current from laptop\'s AC adapter is 4.5A. This unit can be up to 5.6A under strong sun.

That means its full charging time for laptop is equal to AC adapter\'s charging by mains supply!

Getting FREE energy from solar and bringing you short charging time.

3


2. Chargingthe 12V battery with solar controller


Feature:

1. 12V +USB 5V Dual Output

2. Three states of charge way

3. 4 indicators showing battery power (25%, 50%, 75%, 100%)

4. PWM (Pulse Width Modulation) Technology

5. Short circuit, Electronic protection, Over current protection

6. Maintains your battery in peak condition and protects it against discharging and overcharging

(This solar controller is used for 12V lead-acid battery. If other battery types, you will need other special solar controllers.)

100-c1251201

Full charging time for 12V/20AH lead-acid battery under strong sun: about 3.5h

Full charging time for 12V/40AH lead-acid battery under strong sun: about 7h

Here the solar controller is only used with 12V lead-acid battery, if other battery types, please contact us.

Above info is based on the solar panel can realize its max current when the sunshine condition is strong enough to reach its peak power.
All solar panels\' output are totally decided by sunshine intension. Its current will be 0A-5.6A when use.
So the real charging time will be decided by sunshine condition.

Real time under sunshine, the current will be changed as per sunshine intension.
c52
c54c53c51


3. Charging mobile phones, MP3, MP4, PSP, and other 5V reachargeable digital products via solar controller when it is connected with 12V lead-acid battery.
10a12v5vgg

Below link is more details about this solar controller:
http://www.aliexpress.com/store/product/Free-Shipping-1pc-lot-10A-12V-USB-5V-PWM-Solar-Charge-Controller-Solar-Controller-Solar-Regulator/317297_1712759426.html



C. Specification

1. Solar panel peak power: 100W

2. Solar type: imported monocrystalline

3, Output: 18V/5.6A (max, at no-load condition)

(All solar panels\' outputs are totally decided by sunshine intension.

When testing its current, please try to do this under direct strong sunlight at noon.)

4. Efficiency: >19%

5. Output interface: SAE

6. Extended size: 140x80x0.7cm

7. Folded size: 40x27x9cm

8. Weight: 4.5kg

(The size and weight info will be different due to different designs and measure ways. Please in kind prevail.)

9. Color: black, green camouflage, digital camouflage...

(It can be made as per your request if quantity up to 5pcs at one time.)



Kind Remark: Please kindly leave a message about the needed color when placing the order. Otherwise, goods will be sent randomly as per current stock to let you receive it asap. Thanks.



Green Camouflage:
100w3s
Digital Camouflage:
100
Black:


55-1


Materials:
Solar panel: FROSTED PET laminated
Fabric (waterproof): 600D PVC

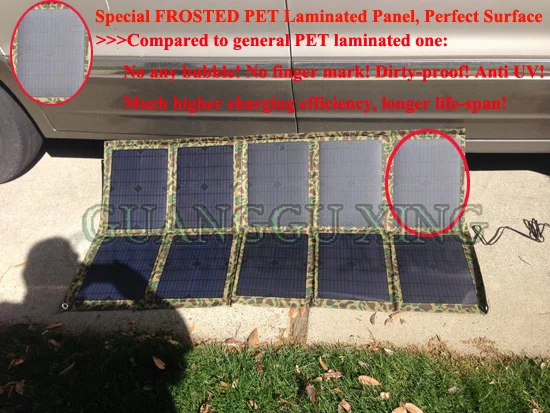

PERFECT SOLAR PANEL SURFACE, NO BUBBLE, NO FINGER MARK, ANTI-UV, HIGHER CHARGING EFFICIENCY, LONGER LIFE-SPAN... THE ONLY STORE SELLING THIS STYLE ON ALIEXPRESS!

1202



Solar panel: FROSTED PET laminated
Fabric (waterproof): 600D PVC

Then let’s see the differences between the updated and general panel.



1, No Bubble

frosted pet1

VS

bubble1

bubble12general pet-bubble2general pet-scratch2



2, No Finger Mark

frosted pet2



3, Dirty-Proof

550



4, Anti-UV to Improve Charging Efficiency

DSC03825



5, Improve the Life-Span with a more layer of pet lamination at back

6



Accessories:
1,  10 connectors for laptops
(Lenovo, HP, Dell, Samsung, Haier, Asus, SONI, Acer, IBM, Toshiba.)

2, 10A 12V/USB 5V Solar Controller with battery clamps.

Packing: 1pc in box
Size: 440 (L)*300 (W)*80 (H) mm

Weight: 4.5kg

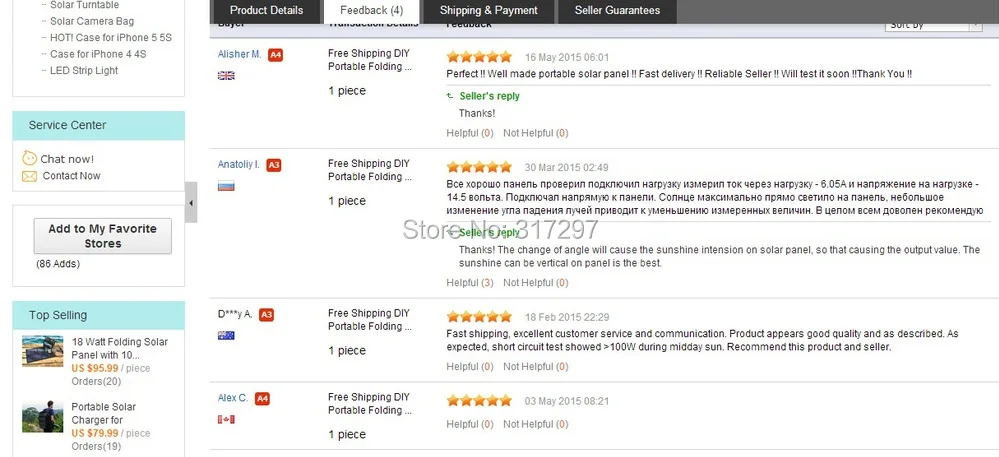

And let\'s see what are the feedbacks from customers after they bought and used the products.

8~

100wcomment
